Old F-15

Specifications

Scale:

  1/9
Length:   2160 mm (85 inches)
Wingspan:   1450 mm (57 inches)
Weight:   9,5 kg (21 lbs)
Suitable Thrust Class:   Kit PA130:   50 to100 N (12 to 22 lbs)
  Kit PA120:   100 to 160 N (22 to 37 lbs)

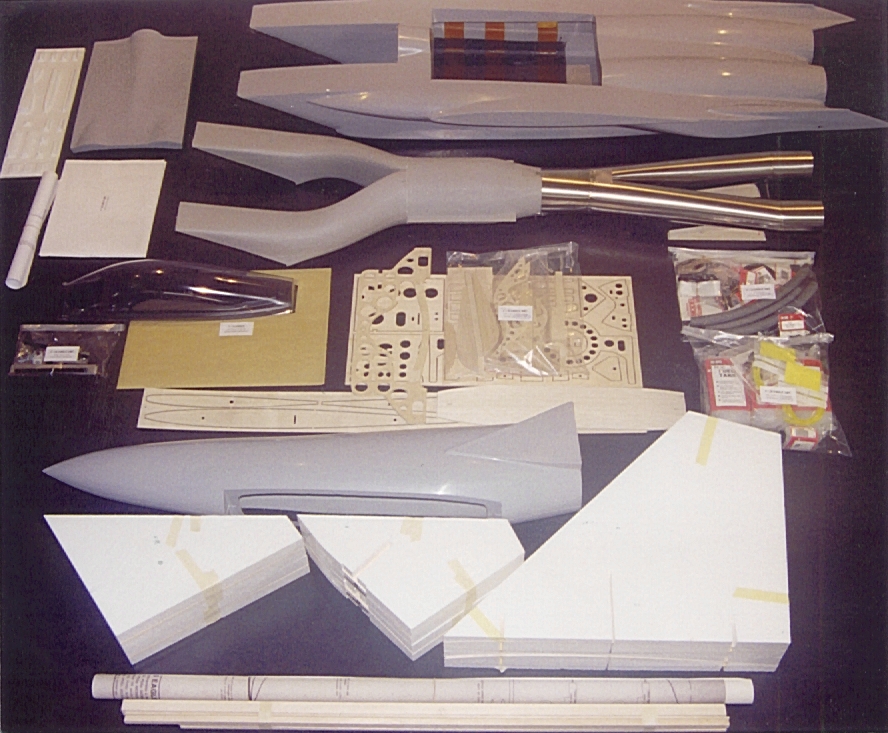

Kit contents



carbon reinforced, gel-coated epoxy glass main fuselage and nose

  • gel-coated epoxy glass intake liners, bypass duct and main hatch

  • high density foam flying surfaces balsa sheeted and carbon reinforced

  • vacformed clear canopy and black plastic cockpit deck

  • vacformed plastic scale detail set

  • CNC routered plywood and balsa parts

  • balsa leading edge and trailing edge stock

  • stainless steel bifurcated tailpipe

  • ceramic felt tailpipe insulation material

  • complete fuel tank system

  • complete hardware package including wheels

  • full size plans

  • photo illustrated detailed manual
